netkit is a lightweight, modular R package designed to simplify the analysis and visualization of complex networks, particularly in biological contexts such as protein–protein interactions, gene co-expression, and signaling networks. However, provided functions and analyses can theoretically be applied to any kind of interaction network. It provides a user-friendly interface to explore network topology, visualize annotated graphs, simulate signal diffusion, and evaluate network robustness.

Key use cases include:

  • Mapping metadata onto networks

  • Identifying hubs, bottlenecks, and communities

  • Simulating information flow within a network

  • Prioritizing seed nodes for targeted interventions

  • Visualizing networks with meaningful node/edge annotations

With a special scope to generate high-quality and interpretable figures suitable for publication, most of the functions generate both tabular results and diagnostic plots. The package also offers flexible network visualization options that support node/edge metadata mapping, dynamic sizing, and layout control.

The toolkit is built on igraph, but adds streamlined, high-level functionality to perform common network analysis tasks with minimal friction. All diagnostic plots are built on ggplot2, allowing for flexible customization.

0. Installation

netkit can be installed from github, as follows:

# If not already installed:
install.packages("devtools")

# Install netkit from GitHub
devtools::install_github("agallinat/netkit")
# Load netkit
library(netkit)

1. Annotate Graphs

For this tutorial we will use two different synthetic graphs generated using igraph::sample_pa() and igraph::sample_gnp() functions. We also generate two data.frame objects containing simulated nodes’ and edges’ metadata to be included in the original graph.

suppressMessages(library(igraph))

set.seed(123)

# Generate synthetic graphs
g <- sample_pa(100, power = 1.5, directed = F)
V(g)$name <- as.character(1:vcount(g))

g2 <- sample_gnp(100, 0.02, directed = T)
V(g2)$name <- as.character(1:vcount(g2))

# Simulate nodes and edges metadata
nodes_info <- data.frame(node = V(g)$name,
                         category = sample(LETTERS, vcount(g), replace = T),
                         score = rnorm(vcount(g)))

edges <- as_edgelist(g)
edges_info <- data.frame(from = edges[,1], to = edges[,2], edge_score = rnorm(ecount(g)))

For instance, this simulated metadata could represent gene expression results, entity types, edge confidence scores, effect of the interaction, or any type of information, that may be useful to include as an igraph object. We can annotate an existing graph, using the assign_attributes() function. Only matching nodes and edges are updated. Warnings are issued when there are unmatched entries.

library(netkit)

# Add metadata to an existing graph
g <- assign_attributes(g, nodes_table = nodes_info, edge_table = edges_info)

vertex_attr_names(g)
#> [1] "name"     "category" "score"
edge_attr_names(g)
#> [1] "edge_score"

2. Network Visualization

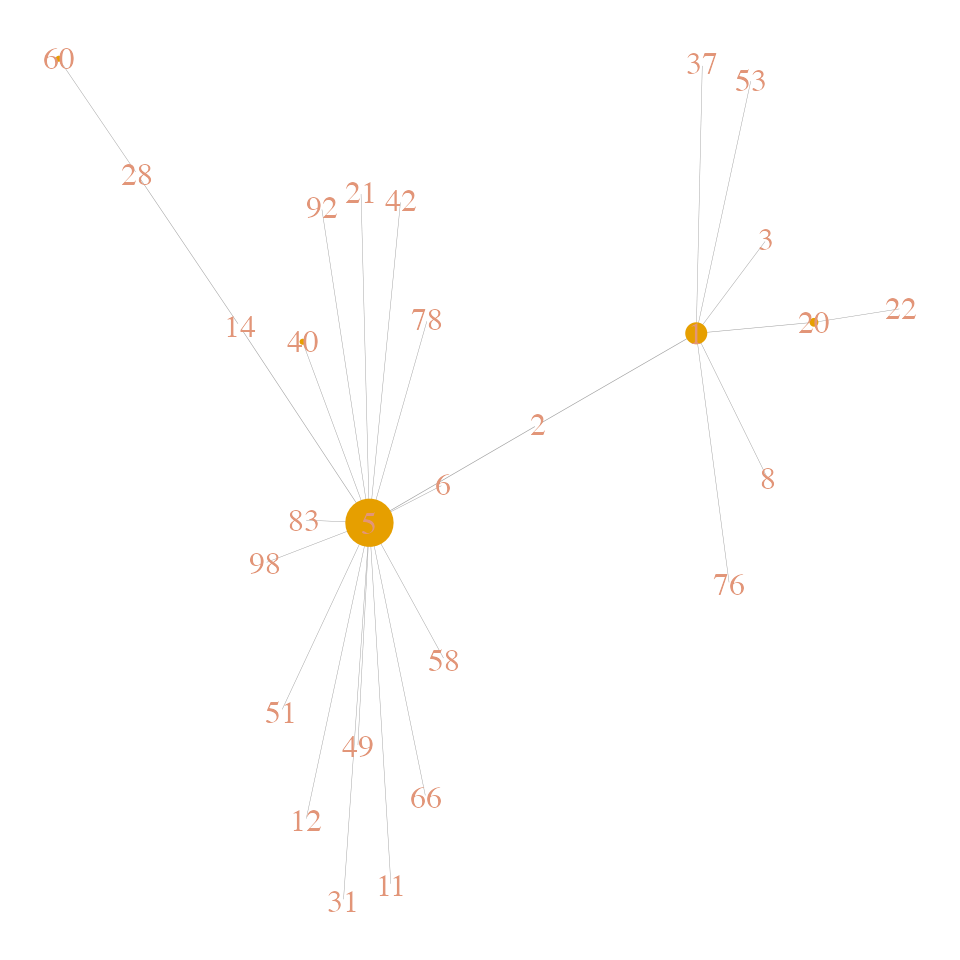

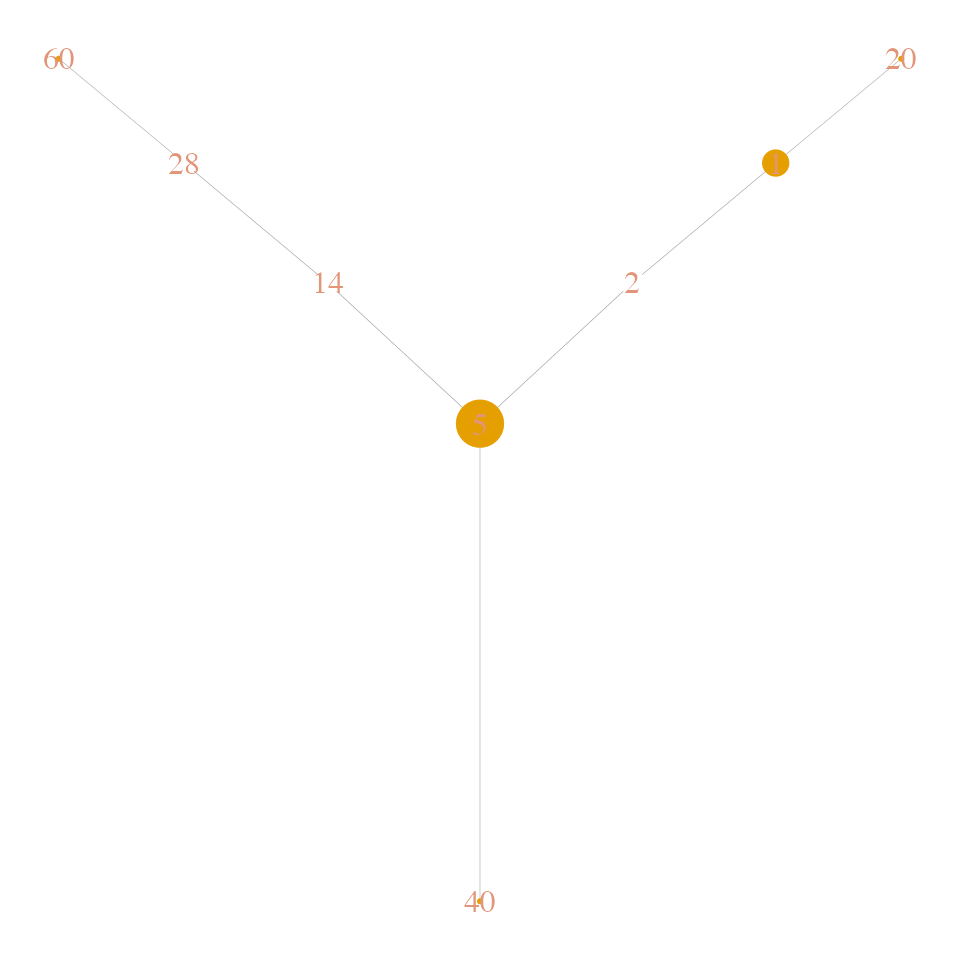

plot_Net() is the main visualization function. It supports size/color mapping of nodes and edges using existing nodes’ metadata. It also allows layout control.

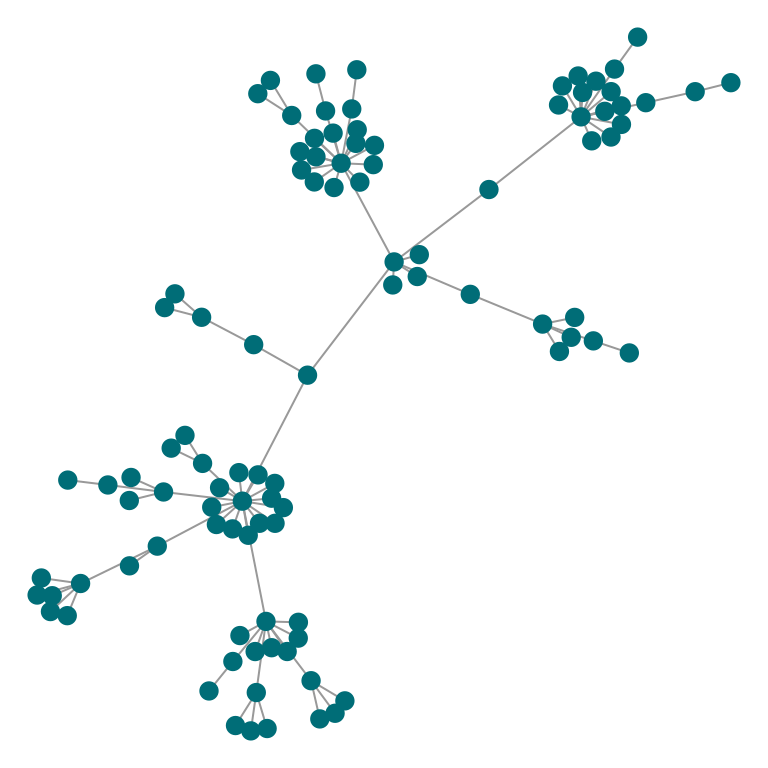

# In the default plot, nodes' size is mapped to degree and edges' width to betweenness

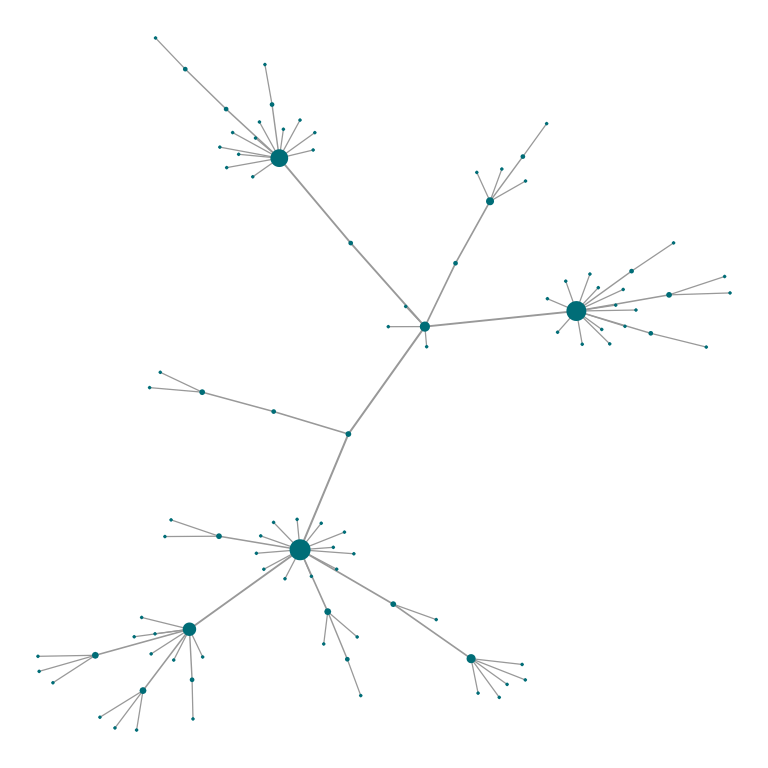

plot_Net(g)


# Nodes size and edge with scalling factors can be modified at will.

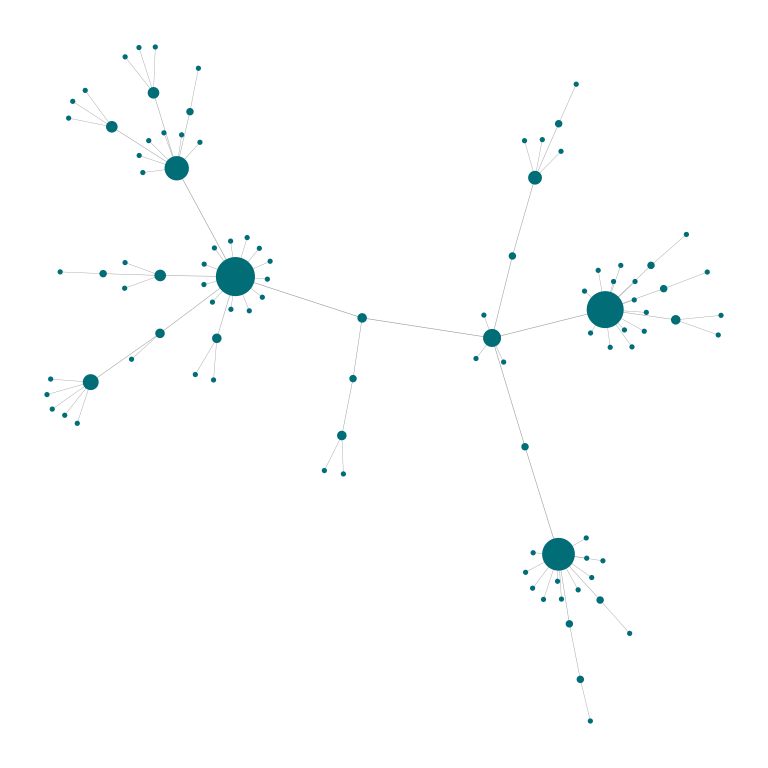

plot_Net(g, edge.width.factor = 0.3, node.size.factor = 2)


# And turned off
plot_Net(g, node.degree.map = F, edge.bw.map = F)

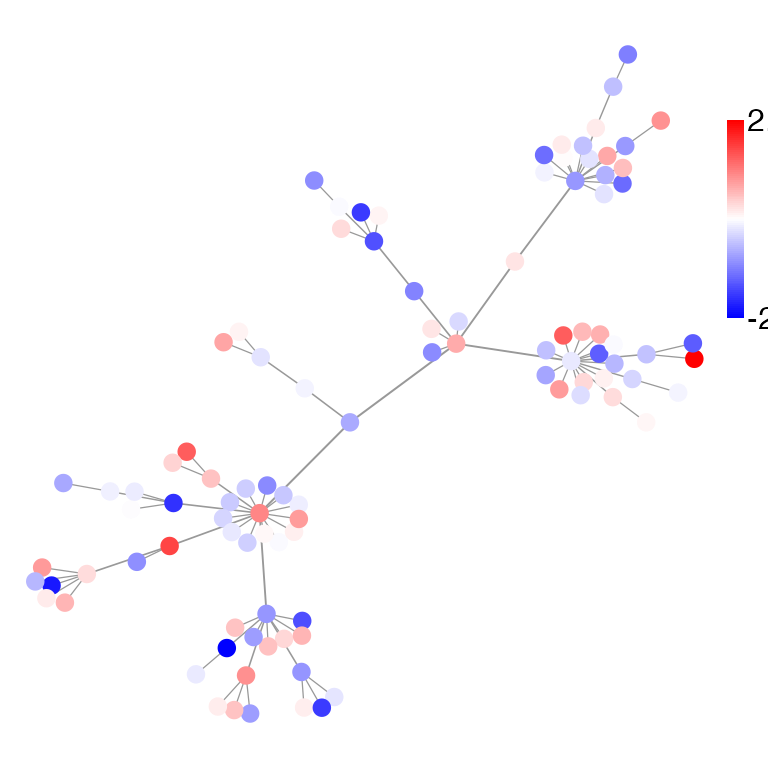

# Node colors can be mapped to existing nodes metadata
plot_Net(g, color = "score", node.degree.map = F)

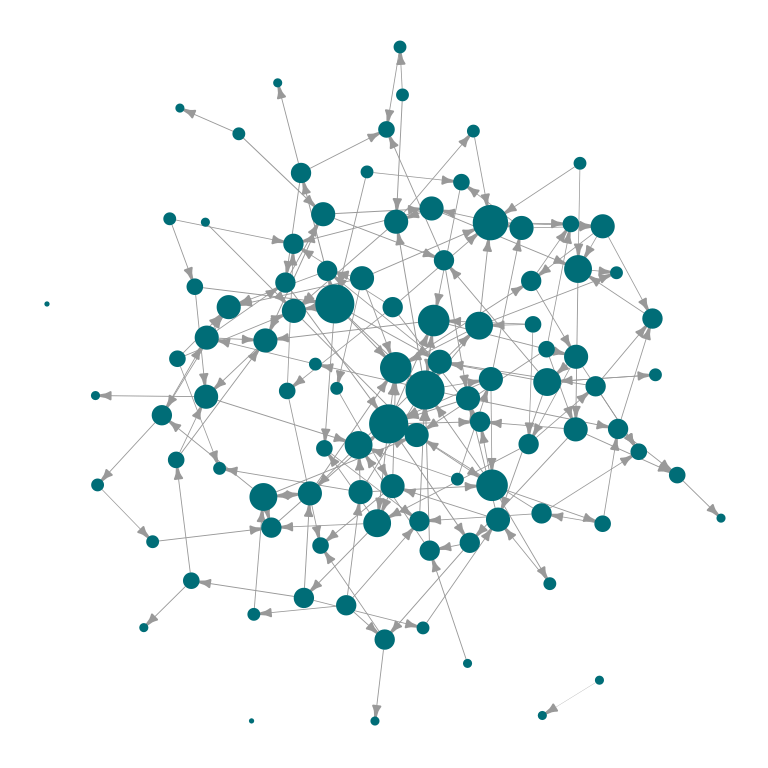

# For directed graphs, arrow sizes are also easily custimizable
plot_Net(g2, edge.width.factor = 0.5, node.size.factor = 2, edge.arrow.size = 0.3)

Specific nodes can also be highlighted using the function highlight_nodes() and the nodes’ name. Highlighting method (label, fill and/or outline) and colors can be customized at will. Aditional arguments are passed to the plot_Net() function:

highlight_nodes(g, nodes = c("1", "2", "4"), method = c("outline", "fill"),
                edge.width.factor = 0.3, node.degree.map = FALSE)

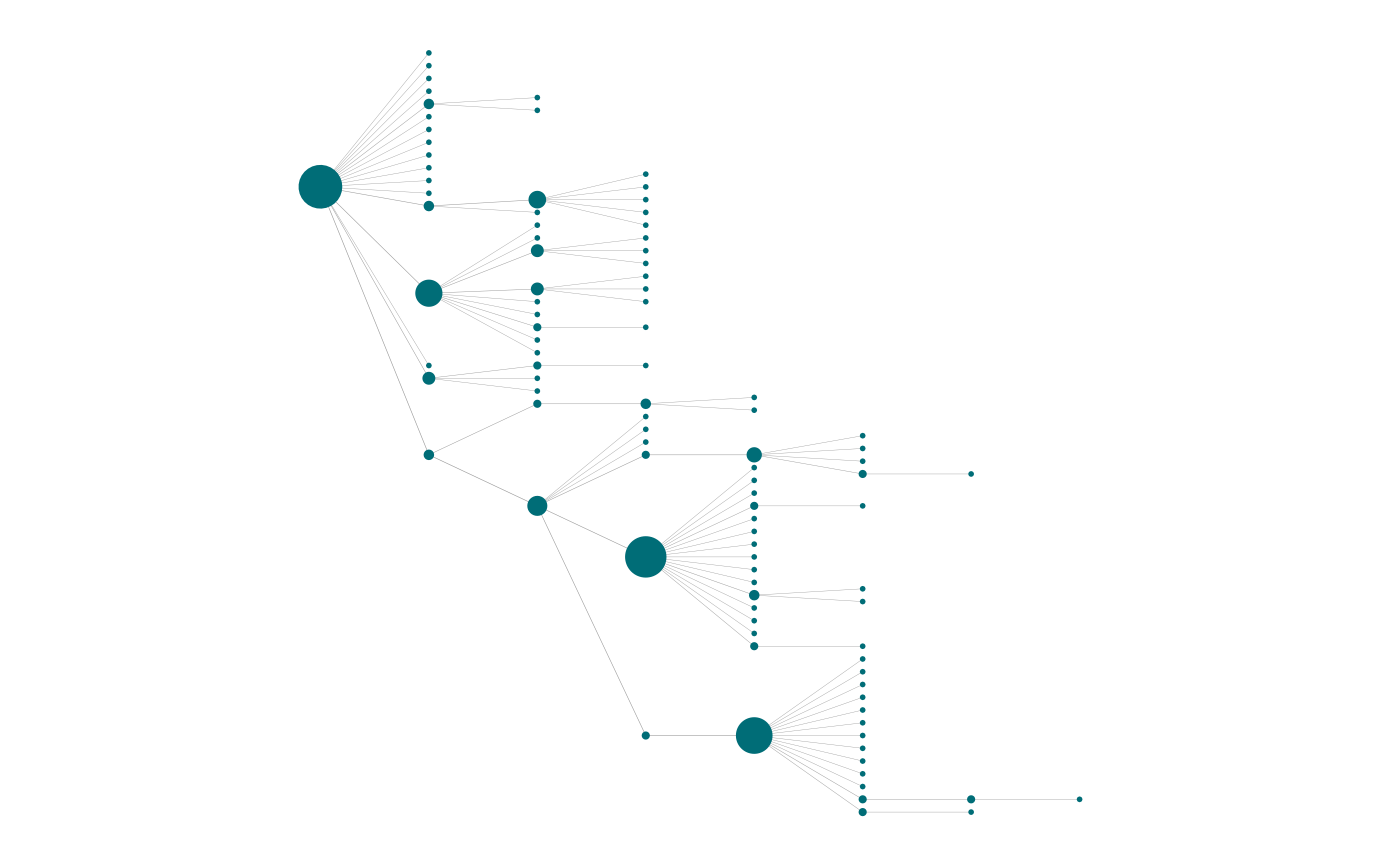

Both functions (plot_Net() and highlight_nodes()) also allow for layout control via layout parameter. This accepts a coordinates matrix custom or generated by any of the layout functions available in igraph package. A special layout option has been implemented in netkit package to display the network as a horizontal tree (layout_horizontal_tree()). Which is particularly useful to show hierarchical relationships.

plot_Net(g, edge.width.factor = 0.3, node.size.factor = 2,
         layout = layout_horizontal_tree(g))

3. Topological Analysis

3.1. Global topology

The core functions for a global network topology analysis are plot_CCDF(), which generates a plot of the complementary cumulative degree distribution (CCDF), and sumarize_graph_metrics(), which calculates the following parmeters for an input graph:

  • Number of nodes and edges
  • Directed TRUE/FALSE
  • Graph density
  • Diameter and average path length of the largest connected component
  • Clustering coefficient (transitivity)
  • Degree assortativity
  • Average degree and betweenness centrality
  • Number of connected components and size of the largest connected component
  • Number of single nodes
  • Algebraic connectivity (second-smallest Laplacian eigenvalue)
  • Degree entropy (Shannon entropy of the degree distribution)
  • Gini coefficient of node degrees
  • Modularity of the community structure (via Louvain algorithm)

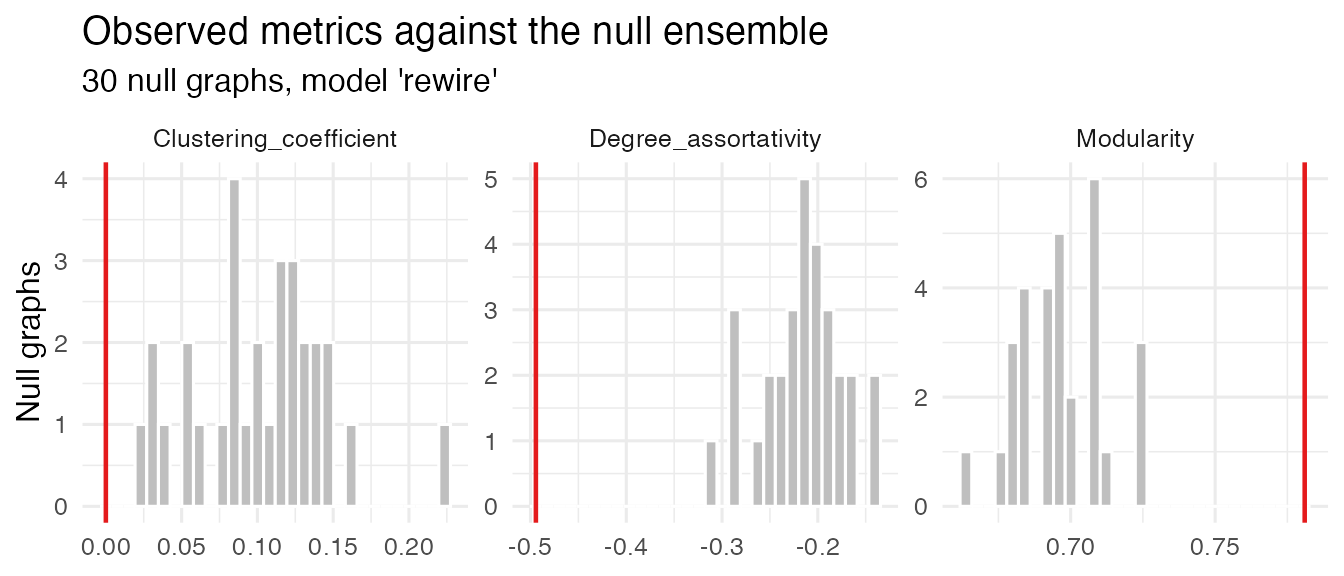

The function compare_networks(), accepts two graphs as input, and computes the same metrics on both, and their associated (CCDF).

# Global topology analysis
summarize_graph_metrics(g)
#>   Nodes Edges Is_directed Density Diameter Average_path_length
#> 1   100    99       FALSE    0.02       10            5.027273
#>   Clustering_coefficient Degree_assortativity Avg_degree Avg_betweenness
#> 1                      0           -0.4943885       1.98          199.35
#>   Components Single_nodes LCC_size LCC_percent Algebraic_connectivity
#> 1          1            0      100           1             0.01500655
#>   Degree_entropy Gini_degree Modularity
#> 1       1.504678   0.4341414  0.7809917

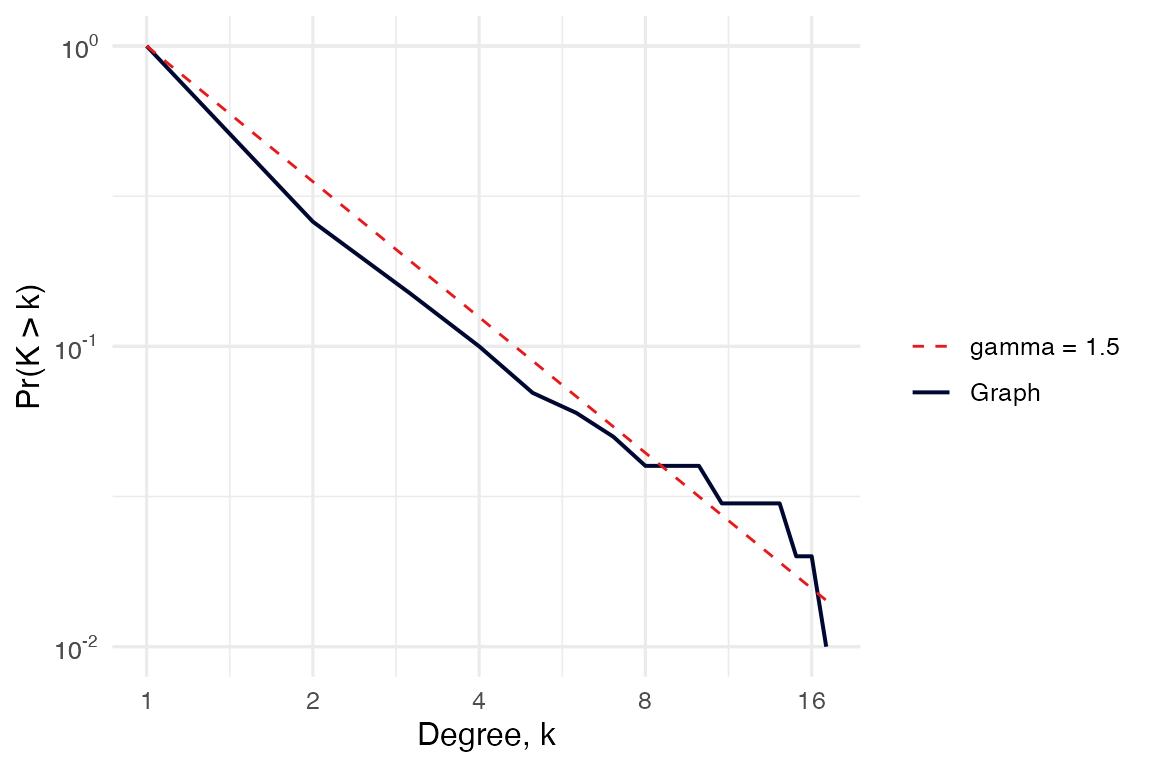

# Complementary cumulative degree distribution
# It optionally shows a power law reference distribution of chosen gamma.
plot_CCDF(g, show_PL = TRUE, PL_exponents = c(1.5))


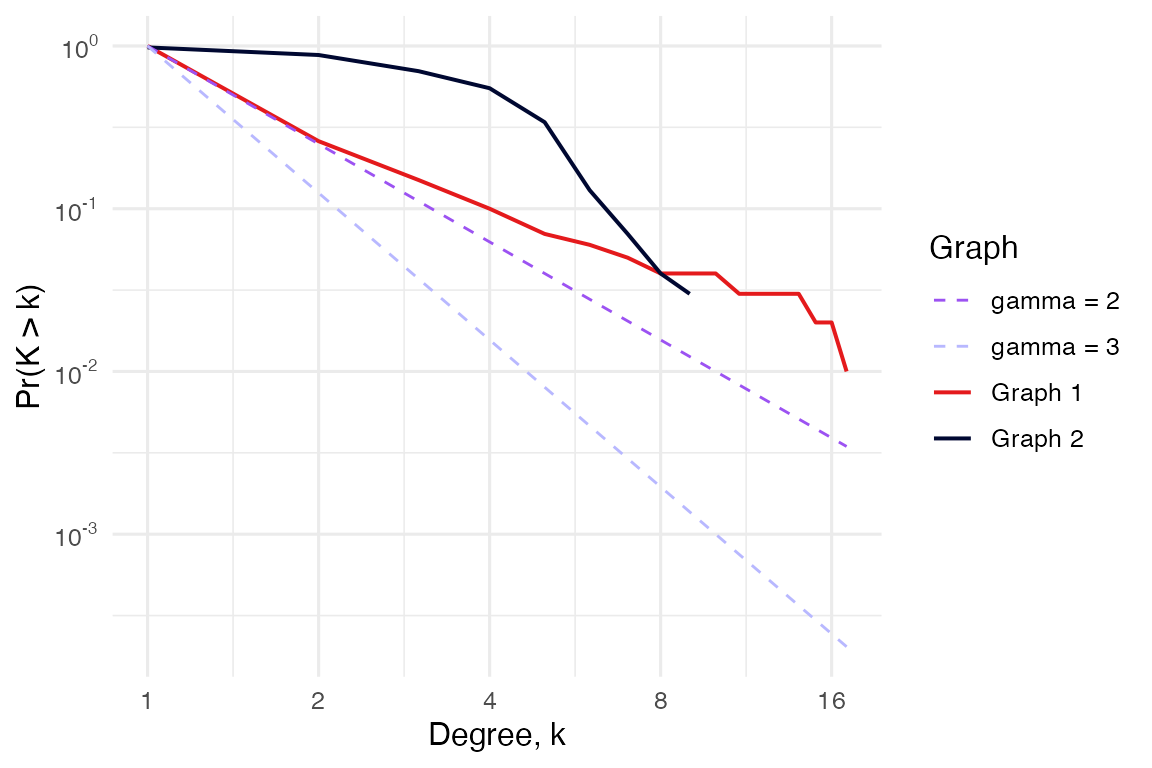

# Same analyses to compare two networks
compare_networks(g, g2)
#> $CCDF_plot

#>
#> $global_topology
#>   Nodes Edges Is_directed   Density Diameter Average_path_length
#> 1   100    99       FALSE 0.0200000       10            5.027273
#> 2   100   183        TRUE 0.0369697        8            3.583333
#>   Clustering_coefficient Degree_assortativity Avg_degree Avg_betweenness
#> 1             0.00000000           -0.4943885       1.98          199.35
#> 2             0.03725598            0.1039542       3.66          117.80
#>   Components Single_nodes LCC_size LCC_percent Algebraic_connectivity
#> 1          1            0      100        1.00           1.500655e-02
#> 2          4            2       96        0.96           3.560702e-18
#>   Degree_entropy Gini_degree Modularity
#> 1       1.504678   0.4341414  0.7809917
#> 2       2.824170   0.2796721  0.4884589
#>
#> $similarity
#>   jaccard_similarity node_overlap edge_overlap
#> 1        0.003558719            1  0.003558719
#>
#> $ks_test
#>
#>  Asymptotic two-sample Kolmogorov-Smirnov test
#>
#> data:  deg1 and deg2
#> D = 0.62, p-value < 2.2e-16
#> alternative hypothesis: two-sided

3.2. Robustness Analyisis

The package implements robustness_analysis() for simulating network robustness under targeted or random node removal, following the framework of Albert et al., 2000.

In this context, robustness refers to a network’s ability to maintain its connectivity and functionality when nodes are removed — either randomly (failures) or in a targeted manner (attacks). This distinction is particularly relevant in biological networks, where random failures may represent stochastic damage (e.g., mutations, degradation), while targeted attacks can simulate inhibition of key regulatory nodes or drug targets.

The function accepts the parameter removal_strategy which defines the order of the nodes to be removed. It can be one of: "random", "degree", "betweenness", or the name of a numeric vertex attribute. Custom attributes are interpreted as priority scores (higher = removed first). At each step, the function tracks the size of the largest connected component, allowing visualization of how rapidly the network fragments under each scenario. This analysis is useful to evaluate network resilience and identify critical nodes whose disruption may disproportionately affect system integrity.

If the removal strategy is set to "random" and n_reps > 1, a summarized data frame (with mean and SD) is returned as summary.

# Robustness analysis
robustness_analysis(g, removal_strategy = "betweenness")
#> $plot

#>
#> $all_results
#> # A tibble: 50 × 6
#>      rep removed removed_frac lcc_size efficiency n_components
#>    <int>   <int>        <dbl>    <dbl>      <dbl>        <dbl>
#>  1     1       1       0.0101       54    0.107             17
#>  2     1       2       0.0202       20    0.0587            23
#>  3     1       4       0.0404       18    0.0411            37
#>  4     1       6       0.0606        8    0.0140            58
#>  5     1       8       0.0808        7    0.0130            58
#>  6     1      10       0.101         6    0.0103            62
#>  7     1      12       0.121         4    0.00705           67
#>  8     1      14       0.141         4    0.00492           71
#>  9     1      16       0.162         3    0.00387           72
#> 10     1      18       0.182         3    0.00256           74
#> # ℹ 40 more rows
#>
#> $summary
#> # A tibble: 50 × 6
#>      rep removed removed_frac lcc_size efficiency n_components
#>    <int>   <int>        <dbl>    <dbl>      <dbl>        <dbl>
#>  1     1       1       0.0101       54    0.107             17
#>  2     1       2       0.0202       20    0.0587            23
#>  3     1       4       0.0404       18    0.0411            37
#>  4     1       6       0.0606        8    0.0140            58
#>  5     1       8       0.0808        7    0.0130            58
#>  6     1      10       0.101         6    0.0103            62
#>  7     1      12       0.121         4    0.00705           67
#>  8     1      14       0.141         4    0.00492           71
#>  9     1      16       0.162         3    0.00387           72
#> 10     1      18       0.182         3    0.00256           74
#> # ℹ 40 more rows
#>
#> $auc
#> $auc$lcc_size
#> [1] 0.04638982
#>
#> $auc$efficiency
#> [1] 0.03235174
#>
#> $auc$n_components
#> [1] 0.5862681

3.3. Hubs

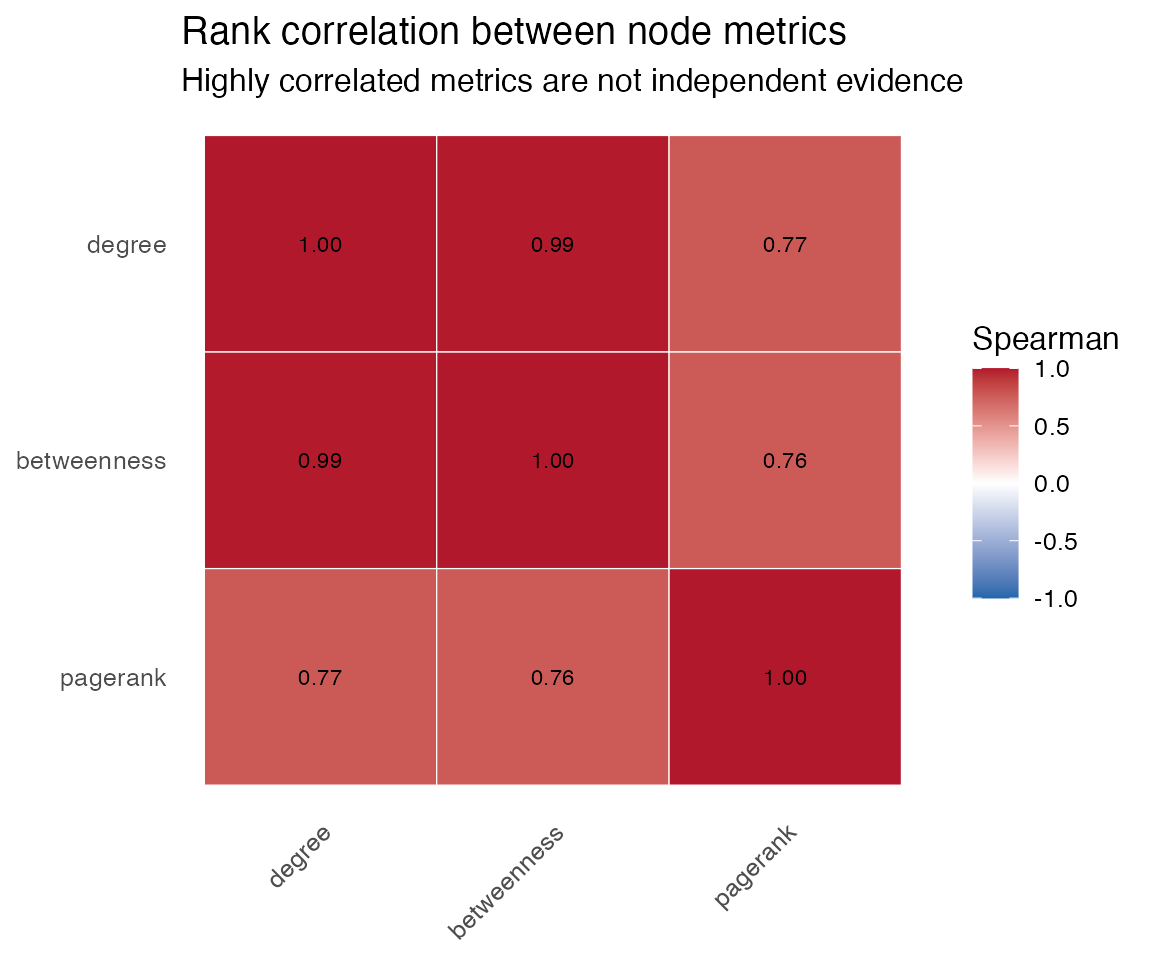

Hub nodes are defined as nodes with a particularly high degree and betweenness centrality. Using the function find_hubs(), we can identify these nodes using either z-score or quantile thresholds for degree and betweenness centrality. The function generates a diagnostic plot to visualize the classification using a scatter plot with marginal histograms.

# Hubs detection
find_hubs(g, method = "zscore",
          degree_threshold = 2.5,
          betweenness_threshold = 1,

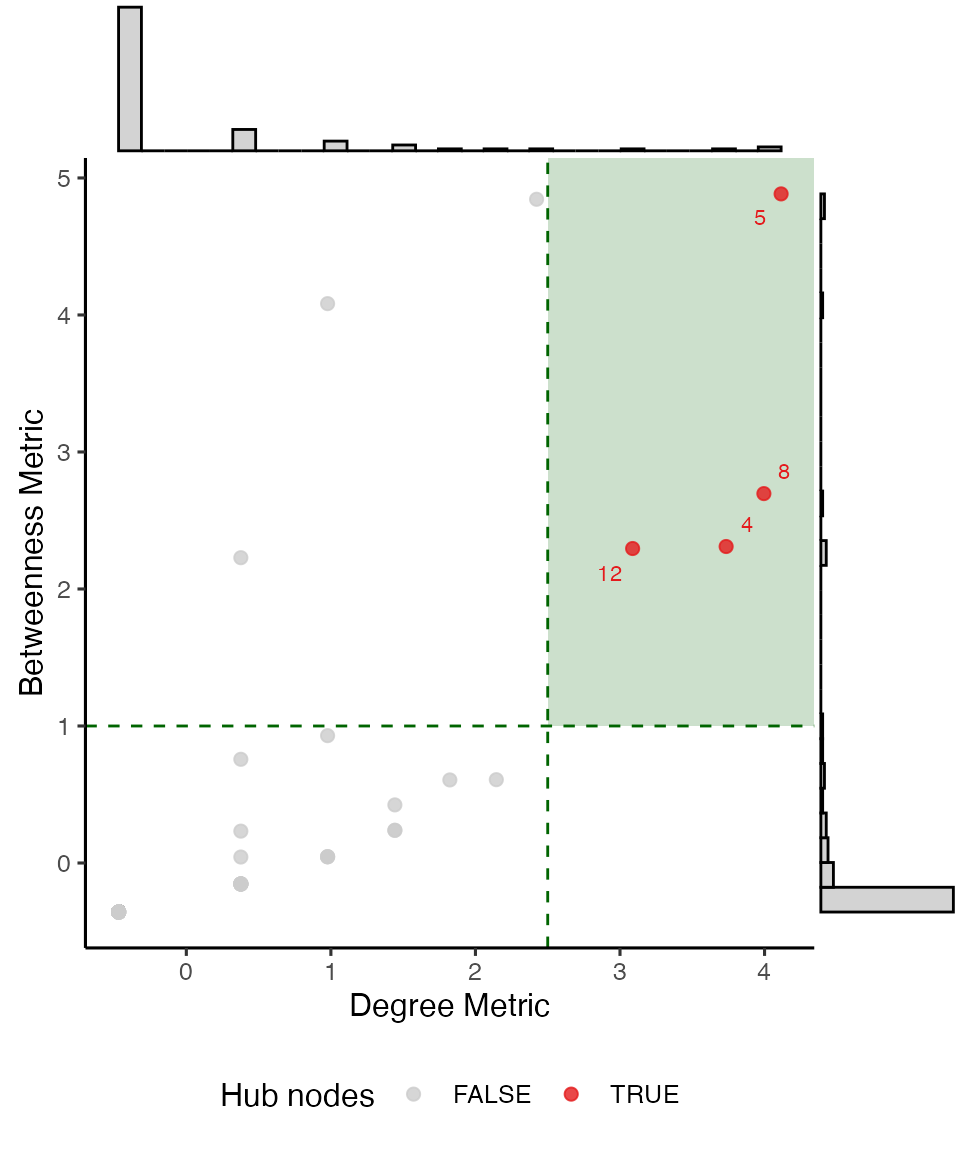

          hub_names = TRUE) # to display hub nodes' label in the diagnostic plot

#> $plot
#>
#> $method
#> [1] "Hub nodes identified by method: zscore with Degree metric threshold = 2.5 and Betweenness metric threshold = 1"
#>
#> $result
#> # A tibble: 100 × 6
#>    node  degree betweenness degree_metric betweenness_metric is_hub
#>    <chr>  <dbl>       <dbl>         <dbl>              <dbl> <lgl>
#>  1 1          7      0.662          2.42               4.84  FALSE
#>  2 2          3      0.543          0.977              4.08  FALSE
#>  3 3          2      0.287          0.377              2.23  FALSE
#>  4 4         14      0.298          3.73               2.31  TRUE
#>  5 5         17      0.669          4.11               4.88  TRUE
#>  6 6          4      0.0794         1.44               0.424 FALSE
#>  7 7          1      0             -0.469             -0.358 FALSE
#>  8 8         16      0.348          4.00               2.70  TRUE
#>  9 9          2      0.0202         0.377             -0.153 FALSE
#> 10 10         2      0.0202         0.377             -0.153 FALSE
#> # ℹ 90 more rows
#>
#> $graph
#> IGRAPH 5ed3cdb UN-- 100 99 -- Barabasi graph
#> + attr: name (g/c), power (g/n), m (g/n), zero.appeal (g/n), algorithm
#> | (g/c), name (v/c), category (v/c), score (v/n), is_hub (v/l),
#> | edge_score (e/n)
#> + edges from 5ed3cdb (vertex names):
#>  [1] 1 --2  1 --3  3 --4  2 --5  5 --6  6 --7  1 --8  4 --9  8 --10 5 --11
#> [11] 5 --12 12--13 5 --14 8 --15 6 --16 2 --17 14--18 4 --19 1 --20 5 --21
#> [21] 20--22 19--23 12--24 12--25 25--26 12--27 14--28 12--29 12--30 5 --31
#> [31] 4 --32 30--33 28--34 17--35 23--36 1 --37 12--38 22--39 5 --40 6 --41
#> [41] 5 --42 4 --43 8 --44 8 --45 8 --46 4 --47 4 --48 5 --49 10--50 5 --51
#> [51] 35--52 1 --53 8 --54 30--55 4 --56 12--57 5 --58 4 --59 28--60 46--61
#> + ... omitted several edges

The diagnostic plot is generated using ggplot2 with a ggExtra layer. Additional ggplot2 parameters or layers should be added before the plot is rendered. For this reason, the function includes the argument gg_extra = list() which passes comma-separated ggplot2 parameters and layers to the plot before rendering, as follows:

# First we need to load `ggplot2` library for
suppressMessages(library(ggplot2))

# Hubs detection plot customization.
# Notice all arguments in `gg_extra` are in list format, separated with commas, not `+` signs (as usual for `ggplot2`)
# To modify the color of the highlighted area in the plot, use the argument `focus_color`.
hubs_result <- find_hubs(g, method = "zscore", degree_threshold = 2.5, betweenness_threshold = 1,
                         focus_color = "purple",
                         gg_extra = list(xlim(c(-2, 6)),
                                         ylim(c(-2, 6)),
                                         ggtitle("Hubs detection"),
                                         theme_minimal(),
                                         theme(legend.position = "bottom")))

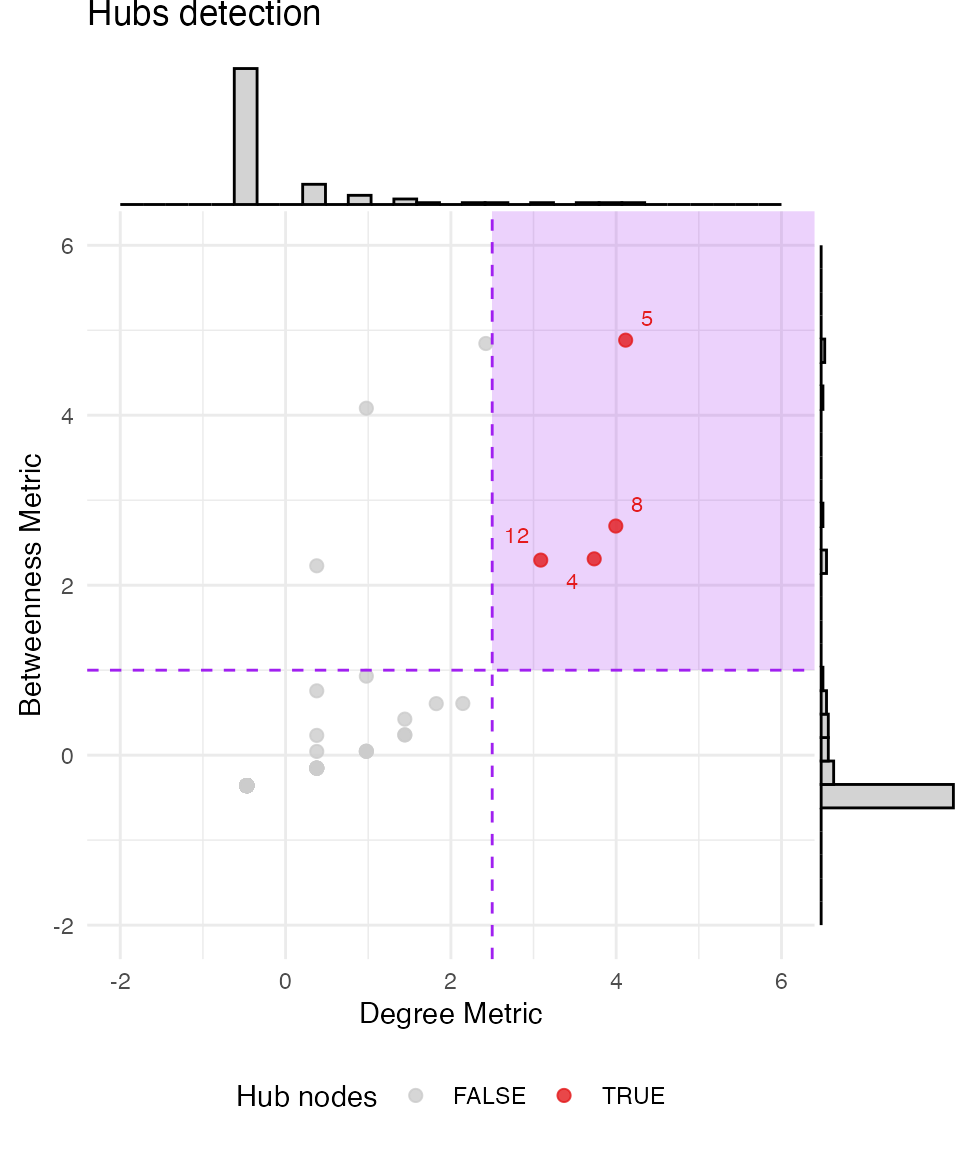

hubs_result$plot

3.4. Bottlenecks

Bottlenecks are defined as nodes with a particularly high betweenness centrality but low degree. Similarly to the find_hubs() function, we can use find_bottlenecks() to identify these nodes. Either z-score or quantile thresholds can be employed for degree and betweenness centrality thresholding. The function generates a diagnostic plot to visualize the classification using a scatter plot with marginal histograms.

As in find_hubs(), the function includes the argument gg_extra = list() which passes comma-separated ggplot2 parameters and layers to the plot before rendering, to allow full plot customization.

# Bottlenecks detection
find_bottlenecks(g,
                 method = "zscore")

#> $plot
#>
#> $method
#> [1] "Bottlenecks identified by method: zscore with Degree metric threshold = -1 and Betweenness metric threshold = 1"
#>
#> $result
#> # A tibble: 100 × 6
#>    node  degree betweenness degree_metric betweenness_metric is_bottleneck
#>    <chr>  <dbl>       <dbl>         <dbl>              <dbl> <lgl>
#>  1 1          7      0.662          2.42               4.84  FALSE
#>  2 2          3      0.543          0.977              4.08  FALSE
#>  3 3          2      0.287          0.377              2.23  FALSE
#>  4 4         14      0.298          3.73               2.31  FALSE
#>  5 5         17      0.669          4.11               4.88  FALSE
#>  6 6          4      0.0794         1.44               0.424 FALSE
#>  7 7          1      0             -0.469             -0.358 FALSE
#>  8 8         16      0.348          4.00               2.70  FALSE
#>  9 9          2      0.0202         0.377             -0.153 FALSE
#> 10 10         2      0.0202         0.377             -0.153 FALSE
#> # ℹ 90 more rows
#>
#> $graph
#> IGRAPH 5ed3cdb UN-- 100 99 -- Barabasi graph
#> + attr: name (g/c), power (g/n), m (g/n), zero.appeal (g/n), algorithm
#> | (g/c), name (v/c), category (v/c), score (v/n), is_bottleneck (v/l),
#> | edge_score (e/n)
#> + edges from 5ed3cdb (vertex names):
#>  [1] 1 --2  1 --3  3 --4  2 --5  5 --6  6 --7  1 --8  4 --9  8 --10 5 --11
#> [11] 5 --12 12--13 5 --14 8 --15 6 --16 2 --17 14--18 4 --19 1 --20 5 --21
#> [21] 20--22 19--23 12--24 12--25 25--26 12--27 14--28 12--29 12--30 5 --31
#> [31] 4 --32 30--33 28--34 17--35 23--36 1 --37 12--38 22--39 5 --40 6 --41
#> [41] 5 --42 4 --43 8 --44 8 --45 8 --46 4 --47 4 --48 5 --49 10--50 5 --51
#> [51] 35--52 1 --53 8 --54 30--55 4 --56 12--57 5 --58 4 --59 28--60 46--61
#> + ... omitted several edges

3.5. Calculate Roles

Beyond classical hubs and bottlenecks, the package implements the function calculate_roles() for node role classification based on within-module and between-module connectivity, as described by Guimerà & Amaral, 2005, which defines nodes’ roles using two metrics:

  • Within-module degree z-score: measures how well-connected a node is to others within its own module (i.e., local hubness).

  • Participation coefficient: quantifies how evenly a node’s links are distributed across different modules, capturing its inter-modular connectivity.

Combining these dimensions allows the classification of nodes into distinct structural roles — such as module hubs, connectors, or peripheral nodes — providing insight into how individual elements contribute to local and global network organization.

The function generates a classic ggplot2 object, thus, the resulting plot is fully customizable with ggplot2.

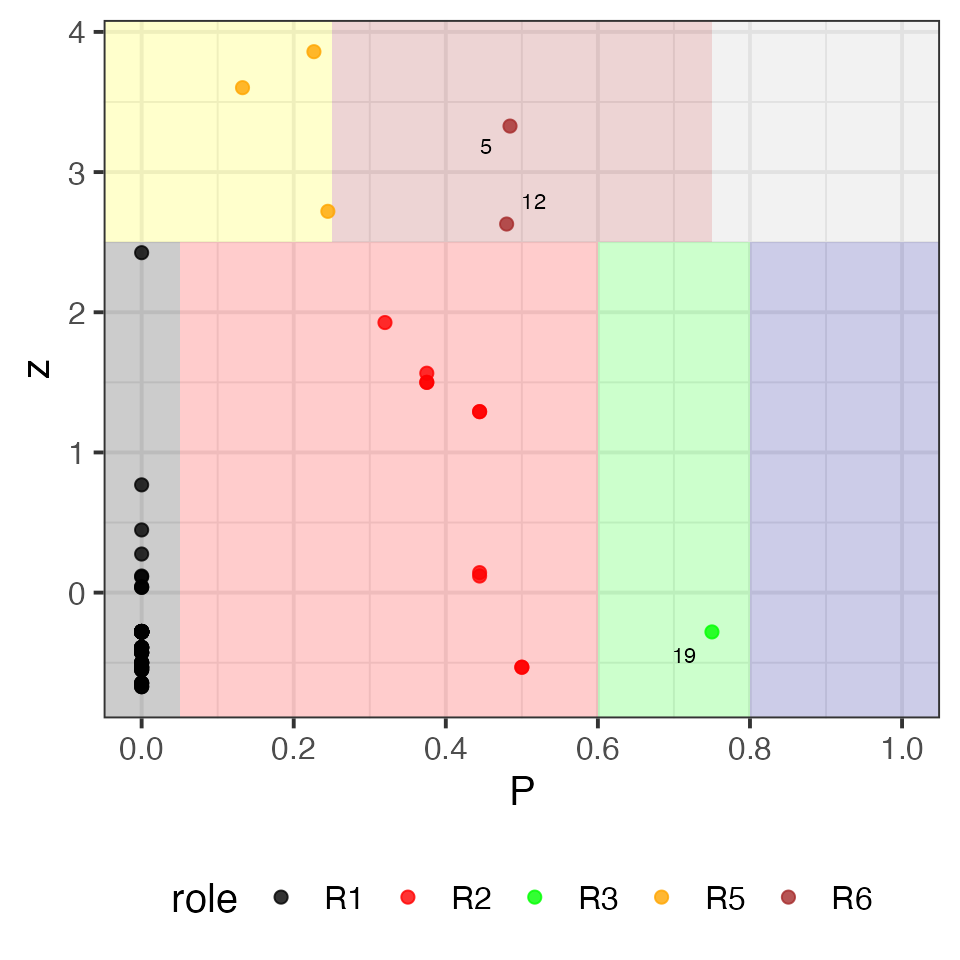

# Hubs detection
calculate_roles(g,
                label.size = 15,
                label_region = c("R3", "R6")) # to display the label of nodes with roles 'R1' and 'R2' in the plot.
#> $plot

#>
#> $roles_definitions
#>   Name                Description                       Condition
#> 1   R1 Ultra-peripheral (non-hub)             z < 2.5 & P <= 0.05
#> 2   R2       Peripheral (non-hub)   z < 2.5 & 0.05 < P & P <= 0.6
#> 3   R3          Non-hub connector    z < 2.5 & 0.6 < P & P <= 0.8
#> 4   R4            Non-hub kinless               z < 2.5 & P > 0.8
#> 5   R5             Provincial hub            z >= 2.5 & P <= 0.25
#> 6   R6              Connector hub z >= 2.5 & 0.25 < P & P <= 0.75
#> 7   R7                Kinless hub             z >= 2.5 & P > 0.75
#>
#> $result
#> # A tibble: 98 × 6
#>    node  module       z     p role  stringsAsFactors
#>    <chr>  <int>   <dbl> <dbl> <chr> <lgl>
#>  1 1          7  2.72   0.245 R5    FALSE
#>  2 2          7  0.118  0.444 R2    FALSE
#>  3 3          7 -0.532  0.5   R2    FALSE
#>  4 4          1  3.60   0.133 R5    FALSE
#>  5 5          8  3.33   0.484 R6    FALSE
#>  6 6          3  1.57   0.375 R2    FALSE
#>  7 7          3 -0.671  0     R1    FALSE
#>  8 8          4  3.86   0.227 R5    FALSE
#>  9 9          1  0.0431 0     R1    FALSE
#> 10 10         4  0.0375 0     R1    FALSE
#> # ℹ 88 more rows

3.6. Modules

The package also implements a function to identify modules (communities) in a network using a variety of community detection algorithms from the igraph package (e.g., Louvain, Walktrap, Infomap). Optionally filters out small modules, visualizes the detected modules, and returns induced subgraphs for each module.

Additional parameters are passed through the plot_Net() function, allowing full customization of the network plot.

# Find modules
find_modules(g,
             method = "louvain",
             edge.width.factor = 0.3, node.size.factor = 2)

#> $module_table
#> # A tibble: 100 × 2
#>    node  module
#>    <chr>  <int>
#>  1 1          1
#>  2 2          1
#>  3 3          1
#>  4 4          2
#>  5 5          3
#>  6 6          4
#>  7 7          4
#>  8 8          5
#>  9 9          2
#> 10 10         5
#> # ℹ 90 more rows
#>
#> $n_modules
#> [1] 8
#>
#> $subgraphs
#> NULL
#>
#> $method
#> [1] "louvain"
#>
#> $graph
#> IGRAPH 5ed3cdb UN-- 100 99 -- Barabasi graph
#> + attr: name (g/c), power (g/n), m (g/n), zero.appeal (g/n), algorithm
#> | (g/c), name (v/c), category (v/c), score (v/n), module (v/n), color
#> | (v/c), label (v/c), edge_score (e/n)
#> + edges from 5ed3cdb (vertex names):
#>  [1] 1 --2  1 --3  3 --4  2 --5  5 --6  6 --7  1 --8  4 --9  8 --10 5 --11
#> [11] 5 --12 12--13 5 --14 8 --15 6 --16 2 --17 14--18 4 --19 1 --20 5 --21
#> [21] 20--22 19--23 12--24 12--25 25--26 12--27 14--28 12--29 12--30 5 --31
#> [31] 4 --32 30--33 28--34 17--35 23--36 1 --37 12--38 22--39 5 --40 6 --41
#> [41] 5 --42 4 --43 8 --44 8 --45 8 --46 4 --47 4 --48 5 --49 10--50 5 --51
#> [51] 35--52 1 --53 8 --54 30--55 4 --56 12--57 5 --58 4 --59 28--60 46--61
#> + ... omitted several edges

4. Information flow

Understanding how signals propagate across a network is a key step in many systems-level analyses. Information flow analysis allows users to identify nodes that are likely to be influenced by a stimulus or, conversely, nodes that can best influence a desired set of targets. For instance, in biological networks, information flow analysis is key for pathway reconstruction, to associate nodes (genes/proteins) to molecular functions or diseases, and to prioritize candidate drugs for a given target.

4.1. Network Diffusion

The functions network_diffusion() and network_diffusion_with_pvalues() simulate the spread of information from a set of seed nodes across the network. Both functions supports several diffusion models ("laplacian", "heat", "rwr") and computes the propagated signal to every node in the network.

network_diffusion_with_pvalues() is an extension of network_diffusion() that assesses the statistical significance of diffusion scores by comparing them to a null distribution obtained via permutation testing (random seed sets of the same size).

These tools are useful for identifying nodes most impacted by a set of sources, such as disease genes, drug targets, or signaling proteins.

# Diffusion analysis
# Select random genes as seed nodes
seed_nodes <- sample(vertex_attr(g, "name"), 5)

network_diffusion(g, seed_nodes = seed_nodes, method = "laplacian")
#> # A tibble: 100 × 2
#>    node   score
#>    <chr>  <dbl>
#>  1 44    0.865
#>  2 79    0.865
#>  3 87    0.850
#>  4 25    0.677
#>  5 41    0.647
#>  6 26    0.224
#>  7 86    0.214
#>  8 8     0.0939
#>  9 6     0.0867
#> 10 4     0.0510
#> # ℹ 90 more rows

network_diffusion_with_pvalues(g, seed_nodes = seed_nodes, method = "laplacian")
#> Running 1000 permutations with 5 random seed nodes each (parallelized)...
#> # A tibble: 100 × 4
#>    node   score p_empirical stringsAsFactors
#>    <chr>  <dbl>       <dbl> <lgl>
#>  1 44    0.865     0.000999 FALSE
#>  2 79    0.865     0.000999 FALSE
#>  3 87    0.850     0.000999 FALSE
#>  4 25    0.677     0.000999 FALSE
#>  5 41    0.647     0.000999 FALSE
#>  6 26    0.224     0.000999 FALSE
#>  7 86    0.214     0.000999 FALSE
#>  8 6     0.0867    0.000999 FALSE
#>  9 12    0.0423    0.000999 FALSE
#> 10 7     0.0225    0.000999 FALSE
#> # ℹ 90 more rows

4.2. Reverse Network Diffusion

The function greedy_seed_selection() implements a greedy algorithm to select a set of seed nodes (of size k) that maximize the total diffusion signal over a given set of target nodes.

This reverse diffusion approach can be thought of as solving the inverse problem: Given a set of nodes I want to affect, which upstream nodes (seeds) should I perturb to maximally reach them?

This method is especially relevant in contexts like:

  • Designing combinatorial interventions to target a disease module.

  • Optimizing signal propagation to modulate a known gene signature.

  • Identifying minimal upstream regulators of observed phenotypes.

The function also includes the optional argument candidate_nodes, a character vector of eligible nodes’ names to be considered as seeds. If NULL (default), all non-target nodes are used.

By simulating and optimizing diffusion iteratively, greedy_seed_selection() helps prioritize actionable nodes in large and complex networks.

Note: Reverse diffusion is a computationally hard problem, as testing all possible combinations of seed nodes is combinatorially explosive -even in small networks-. The function solves this problem with a greedy algorithm, in which the node that most increases the total diffusion signal over the target nodes is added in each iteration (one at a time). This is an heuristic approach that while does not guarantee the absolute best seed set, it performs very well in real-world networks and lapses a reasonable time, making it ideal for exploratory and applied analyses.

# Select random genes as target nodes
target_nodes <- sample(vertex_attr(g, "name"), 5)

greedy_seed_selection(g, target_nodes = target_nodes, k = 20, method = "laplacian")
#> $selected_seeds
#>  [1] "61" "99" "35" "6"  "4"  "5"  "52" "16" "17" "41" "8"  "2"  "32" "43" "47"
#> [16] "48" "56" "59" "64" "87"
#>
#> $final_target_score
#> [1] 0.9790991
#>
#> $scores_at_each_step
#>  [1] 0.1719920 0.3439840 0.5033102 0.6487288 0.6996954 0.7497938 0.7956516
#>  [8] 0.8333527 0.8639716 0.8867701 0.9057855 0.9148409 0.9228732 0.9309054
#> [15] 0.9389377 0.9469700 0.9550023 0.9630345 0.9710668 0.9790991
#>
#> $plot

The generated plot is also a ggplot2 object, and thus, fully customizable.

5. Credits and Contributions

netkit has been developed, and is mantained, by Alex Gallinat, PhD.

Contributions are welcome! If you’d like to report a bug, suggest a feature, or improve documentation, please open an issue or submit a pull request at:

https://github.com/agallinat/netkit/issues

For larger changes, feel free to open a discussion first.
